PAH 275 泥浆泵最先出现在德州利安石油机械有限公司。
]]>
I.?PAH275 泥浆泵参数
| ??泵型 | PAH |
| 输入额定功率 (KW) | 205 (275HP) |
| 额定速度 (SPM) | 175 |
| 冲程(mm) | 203.2(8”) |
| 齿轮传动比 | 4.7 |
| 传动轴额定转速(RPM) | 823 |
| 最大工作压力 (MPa) | 21.9 (3118PSI) |
| 阀 (API) | 4# |
| 最大缸套直径 (mm) | Φ127 (5”) |
| 最大流量 (GPM) | 357(1351L) |
| 最大缸套压力 (MPa) | 7.9(1122PSI) |
| 吸入管尺寸 (mm) | 158 (61/4”) |
| 排出管尺寸 (mm) | 58 (2 9/32”) |
| 外形尺寸（with steel skid,LXWXH） | 3120x1695x1280mm(1223/4”x663/4”x503/8”) |
| 重量（ton）(with skid) | 5.0T(11028LB) |
II?PAH 275 泥浆泵参数
缸套尺寸 | IN | 5” | 4-1/2” | 4” | 3-1/2” | 3-1/4” | 3” |
| Gallon/Minute | 357 | 289 | 228 | 175 | 151 | 128 | |
| 流量 | Liter/Minute | 1351 | 1094 | 863 | 662 | 572 | 485 |
| 排 出 | PSI | 1122 | 1386 | 1753 | 2290 | 2657 | 3118 |
| 压 力 | MPa | 7.9 | 9.7 | 12.3 | 16.1 | 18.7 | 21.9 |
III PAH275 易损件清单(GARDNER DENVER）
PJ8A 5×8 PAH 275
| PAH PJ8A | PART NO. | PART NO. | PART NO. | PART NO. | |
| 缸套 & 缸套密封圈 | 密封 | ||||
| 型号 | 缸套 (Small OD) | 缸套密封 | 缸套 (Large OD) | 阀盖密封 | LAG-0799 |
| 3” | LA-0189-30 | LAG-0266 | LA-0193-30 | ?缸盖密封 | LAG-0799 |
| 3?” | LA-0189-34 | LAG-0266 | LA-0193-34 | ||
| 4” | LA-0189-40 | LAG-0266 | LA-0193-40 | ||
| 4?” | LA-0189-44 | LAG-0266 | LA-0193-44 | ||
| 5” | LAG-0266 | LA-0193-50 | |||
| 描述 | LA – 4 WEB | LA – FULL OPEN | LA – 3 WEB |
| 阀体总成 (聚氨酯) | LA-U5B-13 | LA-4DFO-V1 | LA-PJ482A |
| 阀体总成 (丁晴橡胶) | LA-5B-13 | N/A | N/A |
| 阀座 | LA-4DD-B1 | LA-4FFO-S5 | LA-PJ451 |
| 阀弹簧 | LA-5710-078 | LA-5710-33 | LA-5710-078 |
| 阀胶皮 (聚氨酯) | LA-UDD-4B | LA-4FFO-SI | LA-PJ452 |
| 阀假皮 （丁晴橡胶） | LA-DD-4B | N/A | N/A |
| 阀座取出器爪头 | LA-1700-4 | LA-1700-4FO | LA-1700-4GD |
| 活塞尺寸 | 整体硫化 活塞 | 活塞 | 橡胶 | 整体橡胶 | LL 聚氨酯 |
| 3” | N/A | LA-I30HK14/15 | LA-I30HK | N/A | N/A |
| 3?” | N/A | LA-I34HK14/15 | LA-I34HK | N/A | N/A |
| 4” | LA-RT-400 | LA-I40HK14/15 | LA-I40HK | LA-RB-400 | LA-LL-400 |
| 4?” | LA-RT-440 | LA-I44HK14/15 | LA-I44HK | LA-RB-440 | LA-LL-440 |
| 5” | LA-RT-500 | LA-I50HB14/15 | LA-I50HB | LA-RB-500 | LA-LL-500 |
| 杆 | |
| 活塞杆 | LA-0193 |
| 介杆 | LA-16-0192 |
| 活塞杆卡箍 | LA-24-0191 |
| 活塞杆螺母 | LA-7403364 |
GARDNER DENVER PAH (All Models)
液力端配件
| 序号 | 零件号 | 描述 | 数量/台 |
| 1 | LA-200PJH029B | Fluid Module, Studded (Included Items 2 – 6) | 3 |
| 2 | Fluid Module, Only | 3 | |
| 3 | LA-79AJ2 | Stud – Frame, Liner Clamp | 18 |
| 4 | LA-50B35 | Nut – Frame, Liner Clamp | 36 |
| 5 | LA-79L142 | Stud – Discharge Manifold | 12 |
| 6 | LA-50B9 | Nut – Discharge Manifold | 12 |
| 7 | LA-3PA587 | Threaded Cap | 6 |
| 8 | LA-200PJH147 | Cover – Valve | 6 |
| 9 | LA-200PJH715 | Gasket – Valve Cover | 6 |
| 10 | LA-2013547 | Bushing – Discharge Valve Cover | 3 |
| 11 | LA-200PJH205 | Retainer | 3 |
| 12 | LA-200PJH483 | Valve Guide – Suction | 3 |
| 13 | LA-25G18 | Gasket – Suction Manifold | 3 |
| 14 | LA-25AL54 | Gasket – Discharge Manifold | 3 |
| 15 | LA-1PA217 | Clamp – Liner | 3 |
PAH 275 泥浆泵最先出现在德州利安石油机械有限公司。
]]>

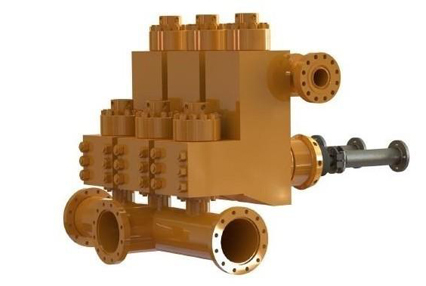

1. SW7500PSI液力端升级包的优点:
- 价格便宜，维护方便
- 新结构更能满足高压力需求
- 设计运行配备有缸套耐磨垫
- 不需要下水阀导
- 配备HP快速更换阀盖组装
2. SW7500PSI液力端升级包可以包含以下泵型:
- BOMCO F1600
- EMSCO FB1600
- GARDNER DENVER PZ11
- HH F1600
- NATIONAL 12P160
- OILWELL A1700PT
3. SOUTHWEST 12P-160 7500 P.S.I. 7-1/2” X 12” 升级包清单
| ITEM NO. | PART NO. | DESCRIPTION | QTY. REQ’D |
| 8476-25A | FLUID END ASSEMBLY (CONSISTS OF ITEMS 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,31,32,33,34,36,37,38) | ||
| 1 | 1376YXX | LINER (REFER TO-GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL (REFER TO-GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) | 3 |
| 3 | 8476-3 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE, AND DISCHARGE MANIFOLD SEAL | 6 |
| 5 | XX-BYY | PISTON (REFER TO-GUIDE FOR ORDERING CHART FOR SIZE (XX) AND TYPE (YY)) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 1286-32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1286-1 | SUB ROD | 3 |
| 10 | 1286CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) | 6 |
| 10A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 10B | 1286CWYFP14 | PIPE (3/8” X 14” GALVANIZED AND THREADED ON ONE END) | 3 |
| 10C | 4020-29 | BOLT (7/8 -9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 12 |
| 11 | 1200G86 | PONY ROD | 3 |
| 12 | SEE PAGE | VALVE | 6 |
| 13 | SEE PAGE | VALVE INSERT (IF REQUIRED) | 6 |
| 14 | SEE PAGE | VALVE SPRING | 6 |
| 15 | SEE PAGE | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) | 1 | |
| 16 | 4488-25 | THREADED FLANGE | 6 |
| 17 | 4588-25 | SCREW GLAND | 6 |
| 18 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 20, 21, & 22) | 6 |
| 19 | P115U | HP VALVE COVER PLUG NITRILE SEAL | 6 |
| 20 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 21 | 4700IU | VALVE GUIDE BUSHING | 6 |
| 22 | 4018-18 | VALVE GUIDE SCREW | 6 |
| 23 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) | 72 |
| 24 | 4015-95 | POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) | 30 |
| 25 | 6476 | LINER RETAINER FLANGE | 3 |
| 26 | 4017-65 | LINER RETAINER FERRY HEAD CAP SCREW | 18 |
| 27 | 6576 | LINER RETAINER NUT | 3 |
| 28 | 4019-54 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) | 24 |
| 30 | 8576-50 | SUCTION MANIFOLD (FRONT OR SIDE INLET) | 1 |
| 31 | AJO419R | SUCTION MANIFOLD GASKET | 3 |
| 32 | 8476-26S | SUCTION MODULE | 3 |
| 33 | 8476-27D | DISCHARGE MODULE | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| 35 | 8376-25MOD | DISCHARGE MANIFOLD | 1 |
| 36 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) | 18 |
| 37 | LW500 | LOCKWASHER | 6 |
| 38 | LW875 | LOCKWASHER | 24 |
| 39 | 9070012 | PONY ROD SEAL | 12 |
| 40 | 80491292 | SPLASH GUARD | 3 |
| ** POLYURETHANE SEAL AVAILABLE** |
7P50泥浆泵最先出现在德州利安石油机械有限公司。
]]>最大输入功率: 500HP（373KW）
冲程 inches(mm): 7-3/4”(196.9)
额定转速, spm : 165
最大缸套尺寸, inches (mm) : 6 1/4” (158.8)
吸入口尺寸: 8” ASA-150 lb. R.J. flang
排出口尺寸 cross: 4” API-5000 lb. R.J. flang
齿轮比: 2.742:1
2. 7P50泥浆泵易损件清单
| NATIONAL 7P50 | PART NO. | PART NO. | Gaskets | PART NO |
| Liners & Liner Packing | Valve Cover Gasket | LA-61-0253 | ||
| SIZES | LINER | LINER PACKING | Cylinder Head Gasket | N/A |
| 4” | LA-0257-40 | LAG-0272 | ||
| 4?” | LA-0257-44 | LAG-0274 | ||
| 5” | LA-0257-50 | LAG-0276 | ||
| 5?” | LA-0257-54 | LAG-0278 | ||
| 6” | LA-0257-60 | LAG-0280 | ||
| 6?” | LA-0257-62 | LAG-0268 | ||
| SERIES | LA – 4 WEB | LA – FULL OPEN |
| VALVE (Urethane Insert) | LA-U5B-05 | LA-5DFO-V1 |
| VALVE (Rubber Insert) | LA-5B-05 | N/A |
| VALVE SEAT | LA-5DD-B3 | LA-5DFO-S3 |
| VALVE SPRING | LA-5710-111 | LA-5710-30 |
| VALVE INSERT (Urethane) | LA-UDD-5B | LA-5DFO-SI |
| VALVE INSERT (Rubber) | LA-DD-5B | N/A |
| VALVE SEAT PULLER HEAD | LA-1700-5 | LA-1700-5FO |
| Piston Size | Bonded Pistons | Imperial Piston | Imperial Rubber Kits | Rubber Bonded | Long Life (Urethane) |
| 4” | LA-RT-400 | LA-I40HK14/15 | LA-I40HK | LA-RB-400 | LA-LL-400 |
| 4?” | LA-RT-440 | LA-I44HK14/15 | LA-I44HK | LA-RB-440 | LA-LL-440 |
| 5” | LA-RT-500 | LA-I50HB14/15 | LA-I50HB | LA-RB-500 | LA-LL-500 |
| 5?” | LA-RT-540 | LA-I54HB14/15 | LA-I54HB | LA-RB-540 | LA-LL-540 |
| 6” | LA-RT-600 | LA-I60HB14/15 | LA-I60HB | LA-RB-600 | LA-LL-600 |
| *1/4 Size are available upon request1/4英寸可根据用户需要提供 | |||||
| RODS | |
| PISTON ROD | LA-0257-A |
| SUB ROD | LA-0257-B |
| EXTENSION ROD | LA-16-0257 |
| ROD CLAMP | LA-24-0257 |
| PISTON ROD NUT | LA-7403364 |
NATIONAL 7P50
FLUID END MODULE AND ACCESSORIES
| Item | Part No. | Description | Qty per Pump |
| 1 | LA-1294150 | Discharge Module, Studded (Included Items 2 – 7) | 3 |
| 2 | LA-1294151 | Discharge Module, Only | 3 |
| 3 | LA-6300160 | Nut – Wedge Adjusting | 24 |
| 4 | LA-2408042 | Stud w/Nut – Frame | 24 |
| 5 | LA-2408043 | Stud w/Nut – Liner Bushing | 18 |
| 7 | LA-2408041 | Stud w/Nut – Discharge to Suction | 18 |
| 9 | LA-1294156 | Suction Module | 3 |
| 10 | LA-1294165 | Bushing – Liner | 3 |
| 11 | LA-1294174 | Seal Retainer | 6 |
| 12 | LA-1294172 | Valve Cover | 6 |
| 13 | LA-1290178 | Screw – Wedge Adjusting | 6 |
| 15 | LA-1290315 | Washer – Wedge Adjusting | 6 |
| 16 | LA-1290181 | Spring – Wedge Assembly | 6 |
| 17 | LA-1290376 | Wedge Assembly | 6 |
| 18 | LA-1540126 | Gasket – Valve Cover | 6 |
| 19 | LA-1292140 | Holder – Valve Guide | 6 |
| 20 | LA-1292141 | Insert – Valve Guide | 6 |
| 21 | LA-6511416 | Pin, 7/8” × 2″ Dowell | 6 |
| 22 | LA-1294160 | 1Plate – Wear | 3 |
| 23 | LA-1294170 | Connector – Discharge | 2 |
| 24 | LA-7000305-10 | Screw, ?” × 1?” Hex Head | 16 |
| 25 | LA-7602050 | Washer, Spring Lock | 16 |
| 26 | LA-1294171 | Adapter – Discharge Connector | 2 |
| 27 | LA-2410031-348 | Packing, Rectangular | 2 |
| 28 | LA-2410031-427 | Packing, Rectangular | 4 |
| 29 | LA-1294166 | Clamp – Liner | 3 |
| 34 | LA-2402560 | Stud, 1?” × 6?” | 16 |
| 35 | LA-6300200 | Nut 1?” Hvy. Hex | 16 |
| 41 | LA-1540142 | Seal – Suction Manifold | 3 |
| 42 | LA-1294168 | Collar – Liner | 3 |
| 43 | LA-1294192 | Seal – Module, Wear Plate | 6 |
| 1Offered in Plain Carbon or Stainless Steel1 | |||
7P50泥浆泵最先出现在德州利安石油机械有限公司。
]]>8P80泥浆泵最先出现在德州利安石油机械有限公司。
]]>最大输入功率: 800HP(597KW)
冲程长度 : 8-1/2” (216mm)
额定转速 : 160 spm
最大缸套尺寸 inches (mm) : 6 1/4” (158.8)
吸入口尺寸: 8” ASA-150 lb. R.J. flang
排出口尺寸, cross: 4” API-5000 lb. R.J. flang
齿轮比: 2.463:1
2. 8P80泥浆泵易损件清单
6 1/2× 8 1/2 8-P-80
| 8P80 | PART NO. | PART NO. | Gaskets | PART NO. |
| Liners & Liner Packing | Valve Cover Gasket | LA-61-0255 | ||
| SIZES | LINER | LINER PACKING | Cylinder Head Gasket | N/A |
| 4” | LA-0256-40 | LAG-0272 | ||
| 4?” | LA-0256-44 | LAG-0274 | ||
| 5” | LA-0256-50 | LAG-0276 | ||
| 5?” | LA-0256-54 | LAG-0278 | ||
| 6” | LA-0256-60 | LAG-0280 | ||
| 6?” | LA-0256-62 | LAG-0268 | ||
| 6?” | LA-0256-64 | LAG-0268 | ||
SERIES | LA-4 WEB | LA-FULL OPEN | LA-G2 | LA-ROUGHNECK |
| VALVE (Urethane Insert) | LA-U5B-EH | LA-6FO-V1 | LA-1560995 | LA-RN6-V1 |
| VALVE (Rubber Insert) | LA-5B-EH | N/A | N/A | N/A |
| VALVE SEAT | LA-6ADD-B4 | LA-6FO-S4 | LA-1561450 | LA-RN6-S4 |
| VALVE SPRING | LA-5710-115 | LA-5710-115 | LA-1560701 | LA-5710-115L |
| VALVE INSERT (Red Thunder) | LA-UDD-6ABHT | N/A | N/A | N/A |
| VALVE INSERT (Urethane) | LA-UDD-6B | LA-6FO-SI | LA-1560587 | LA-RN6-I |
| VALVE INSERT (Rubber) | LA-DD-6B | N/A | N/A | N/A |
| VALVE SEAT PULLER HEAD | LA-1700-6 | LA-1700-6FO | LA-1700-6G2 | LA-1700-6FO |
| Piston Size | Bonded Pistons | Imperial Piston | Imperial Rubber Kits | Rubber Bonded | Long Life (Urethane) |
| 4” | LA-RT-400 | LA-I40HK14/15 | LA-I40HK | LA-RB-400 | LA-LL-400 |
| 4?” | LA-RT-440 | LA-I44HK14/15 | LA-I44HK | LA-RB-440 | LA-LL-440 |
| 5” | LA-RT-500 | LA-I50HB14/15 | LA-I50HB | LA-RB-500 | LA-LL-500 |
| 5?” | LA-RT-540 | LA-I54HB14/15 | LA-I54HB | LA-RB-540 | LA-LL-540 |
| 6” | LA-RT-600 | LA-I60HB14/15 | LA-I60HB | LA-RB-600 | LA-LL-600 |
| 6?” | LA-RT-640 | LA-I64HB14/15 | LA-I64HB | LA-RB-640 | LA-LL-640 |
| *1/4 Size are available upon request1/4 | |||||
| RODS | |
| PISTON ROD | LA-0259-A |
| SUB ROD | LA-0259-B |
| EXTENSION ROD | LA-16-0259 |
| ROD CLAMP | LA-24-0259 |
| PISTON ROD NUT | LA-7403364 |
NATIONAL 8P80
FLUID END MODULE AND ACCESSORIES
| Item | Part No. | Description | Qty per Pump |
| 1 | LA-1291280 | Discharge Module, Studded (Included Items 2 – 10) | 3 |
| 2 | LA-1291281 | Discharge Module, Only | 3 |
| 3 | LA-6300180 | Nut – Frame | 24 |
| 4 | LA-2408026 | Stud – Frame | 24 |
| 5 | LA-6300120 | Nut – Liner Bushing | 18 |
| 6 | LA-2408025 | Stud – Liner Bushing | 18 |
| 7 | LA-6300241 | Nut – Suction to Discharge Module | 18 |
| 8 | LA-2408034 | Stud – Suction to Discharge Module | 18 |
| 9 | LA-6300220 | Nut – Threaded Ring | 72 |
| 10 | LA-2408019 | Stud – Threaded Ring1 | 72 |
| 11 | LA-1290338 | Suction Module, Studded (Included Items 9, 10, 14) | 3 |
| 12 | LA-1290339 | Suction Module, Only | 3 |
| 13 | LA-1291165 | Bushing – Liner | 3 |
| 14 | LA-1290174 | Seal Retainer | 6 |
| 15 | LA-1290307 | Valve Cover | 6 |
| 16 | LA-1290178 | Screw – Wedge Adjusting | 6 |
| 17 | LA-6300160 | Nut – Wedge Adjusting | 6 |
| 18 | LA-1290315 | Washer – Wedge Adjusting | 6 |
| 19 | LA-1290308 | Threaded Ring | 6 |
| 20 | LA-1290376 | Wedge Assembly(included items 21-22) | 6 |
| 21 | LA-1290179 | Wedge, Set | 6 |
| 22 | LA-1290181 | Spring, Wedge Retaining | 6 |
| 23 | LA-1540126 | Gasket – Valve Cover | 6 |
| 24 | LA-1292140 | Holder – Valve Guide | 6 |
| 25 | LA-1292141 | Insert – Valve Guide | 6 |
| 26 | LA-6511416 | Pin, 7/8” × 2″ Dowell | 6 |
| 27 | LA-1290357 | 1Plate – Wear | 3 |
| 28 | LA-1290342 | Connector – Discharge | 2 |
| 29 | LA-7000305-11 | Screw, ?” × 1?” Hex Head | 16 |
| 30 | LA-7619050 | Washer, ?” Lock | 16 |
| 31 | LA-1290343 | Adapter – Discharge Connector | 2 |
| 32 | LA-2410031-348 | Packing, Rectangular | 2 |
| 33 | LA-2410031-427 | Packing, Rectangular | 4 |
| 34 | LA-1291166 | Clamp – Liner | 3 |
| 35 | LA-1590051 | Seal – Suction Manifold | 3 |
| 36 | LA-1291286 | Spacer – Discharge, Studded(included intems 37-39) | 2 |
| 37 | LA-1291287 | Spacer-Discharge | 2 |
| 38 | LA-2402560 | Stud – Discharge Spacer | 16 |
| 39 | LA-6300200 | Nut – Discharge Spacer | 16 |
| 40 | LA-7006607 | Capscrew | 16 |
| 41 | LA-1290344 | Seal – Module, Wear Plate | 6 |
| 42 | LA-1290345 | Seal-Discharge Spacer | 2 |
| 43 | LA-6908033 | Ring, Oval Joint | 2 |
| 1Offered in Plain Carbon or Stainless Steel1 | |||
8P80泥浆泵最先出现在德州利安石油机械有限公司。
]]>9P100泥浆泵最先出现在德州利安石油机械有限公司。
]]>
1. 9P100泥浆泵参数：
最大输入功率: 1000HP(746KW)
冲程 inch(mm) : 9-1/4” (235mm)
额定转速 spm : 150
最大缸套尺寸, inches (mm) : 6 3/4” (171.5)
吸入口尺寸: 8” ASA-150 lb. R.J. flang
排出口尺寸, cross: 5” API-5000 lb. R.J. flang
齿轮比: 2.853:1
2. 9P100泥浆泵易损件清单
6 3/4× 9 1/4 9P100
| PART NO. | PART NO. | PART NO. | PART NO. | ||
| Liners & Liner Packing | Gaskets | ||||
| SIZES | LINER | LINER PACKING | Valve Cover Gasket | LA-61-0255 | |
| 4” | LA-0255-40 | LAG-0274 | Cylinder Head Gasket | N/A | |
| 4?” | LA-0255-44 | LAG-0274 | |||
| 5” | LA-0255-50 | LAG-0265 | |||
| 5?” | LA-0255-54 | LAG-0263 | |||
| 6” | LA-0255-60 | LAG-0261 | |||
| 6?” | LA-255-62 | LAG-0283 | |||
| 6?” | LA-0255-64 | LAG-0768 | |||
| 6?” | LA-0255-66 | LAG-0287 | |||
| SERIES | LA-4 WEB | LA-FULL OPEN | LA-G2 | LA-ROUGHNECK |
| VALVE (Urethane Insert) | LA-U5B-EH | LA-6FO-V1 | LA-1560995 | LA-RN6-V1 |
| VALVE (Rubber Insert) | LA-5B-EH | N/A | N/A | N/A |
| VALVE SEAT | LA-6ADD-B4 | LA-6FO-S4 | LA-1561450 | LA-RN6-S4 |
| VALVE SPRING | LA-5710-115 | LA-5710-115 | LA-1560701 | LA-5710-115L |
| VALVE INSERT (Red Thunder) | LA-UDD-6ABHT | N/A | N/A | N/A |
| VALVE INSERT (Urethane) | LA-UDD-6B | LA-6FO-SI | LA-1560587 | LA-RN6-I |
| VALVE INSERT (Rubber) | LA-DD-6B | N/A | N/A | N/A |
| VALVE SEAT PULLER HEAD | LA-1700-6 | LA-1700-6FO | LA-1700-6G2 | LA-1700-6FO |
| Piston Size | Bonded Pistons | Imperial Piston | Imperial Rubber Kits | Rubber Bonded | Long Life (Urethane) |
| 4” | LA-RT-400 | LA-I40HK14/15 | LA-I40HK | LA-RB-400 | LA-LL-400 |
| 4?” | LA-RT-440 | LA-I44HK14/15 | LA-I44HK | LA-RB-440 | LA-LL-440 |
| 5” | LA-RT-500 | LA-I50HB14/15 | LA-I50HB | LA-RB-500 | LA-LL-500 |
| 5?” | LA-RT-540 | LA-I54HB14/15 | LA-I54HB | LA-RB-540 | LA-LL-540 |
| 6” | LA-RT-600 | LA-I60HB14/15 | LA-I60HB | LA-RB-600 | LA-LL-600 |
| 6?” | LA-RT-640 | LA-I64HL14/15 | LA-I64HL | LA-RB-640 | LA-LL-640 |
| *1/4 Size are available upon request1/4英寸可根据用户需要提供 | |||||
| RODS | |
| PISTON ROD | LA-0260-A |
| SUB ROD | LA-0260-B |
| EXTENSION ROD | LA-16-0260 |
| ROD CLAMP | LA-24-0260 |
| PISTON ROD NUT | LA-7403364 |
NATIONAL 9P100
FLUID END MODULE AND ACCESSORIES
| Item | Part No. | Description | Qty per Pump |
| 1 | LA-1293240 | Discharge Module, Studded (Included Items 2 – 10) | 3 |
| 2 | LA-1293241 | Discharge Module, Only | 3 |
| 3 | LA-6300200 | Nut – Frame | 24 |
| 4 | LA-2408030 | Stud – Frame | 24 |
| 5 | LA-6300160 | Nut – Liner Bushing | 18 |
| 6 | LA-2408018 | Stud – Liner Bushing | 18 |
| 7 | LA-6300241 | Nut – Suction to Discharge Module | 18 |
| 8 | LA-2408034 | Stud – Suction to Discharge Module | 18 |
| 9 | LA-6300220 | Nut – Threaded Ring | 72 |
| 10 | LA-2408019 | Stud – Threaded Ring | 72 |
| 11 | LA-1290338 | Suction Module, Studded (Included Items 9, 10, 14) | 3 |
| 12 | LA-1290339 | Suction Module, Only | 3 |
| 13 | LA-1291165 | Bushing – Liner | 3 |
| 14 | LA-1290174 | Seal Retainer | 6 |
| 15 | LA-1290307 | Valve Cover | 6 |
| 16 | LA-1290178 | Screw – Wedge Adjusting | 6 |
| 17 | LA-6300160 | Nut – Wedge Adjusting | 6 |
| 18 | LA-1290315 | Washer – Wedge Adjusting | 6 |
| 19 | LA-1290308 | Threaded Ring | 6 |
| 20 | LA-1290376 | Wedge Assembly(included items 21-22) | 6 |
| 21 | LA-1290179 | Wedge, Set | 6 |
| 22 | LA-1290181 | Spring, Wedge Retaining | 6 |
| 23 | LA-1540126 | Gasket – Valve Cover | 6 |
| 24 | LA-1292140 | Holder – Valve Guide | 6 |
| 25 | LA-1292141 | Insert – Valve Guide | 6 |
| 26 | LA-6511416 | Pin, 7/8” × 2″ Dowell | 6 |
| 27 | LA-1290357 | 1Plate – Wear | 3 |
| 28 | LA-1290342 | Connector – Discharge | 2 |
| 29 | LA-7000305-11 | Screw, ?” × 1?” Hex Head | 16 |
| 30 | LA-7619050 | Washer, ?” Lock | 16 |
| 31 | LA-1290343 | Adapter – Discharge Connector | 2 |
| 32 | LA-2410031-348 | Packing, Rectangular | 2 |
| 33 | LA-2410031-427 | Packing, Rectangular | 4 |
| 34 | LA-1291166 | Clamp – Liner | 3 |
| 35 | LA-1590051 | Seal – Suction Manifold | 3 |
| 36 | LA-1293243 | Spacer – Discharge, Studded (Included Items 37-39) | 2 |
| 37 | LA-1293244 | Spacer-Discharge | 2 |
| 38 | LA-2402560 | Stud – Discharge Spacer | 16 |
| 39 | LA-6300200 | Nut – Discharge Spacer | 16 |
| 40 | LA-7006606 | Capscrew | 16 |
| 41 | LA-1290344 | Seal – Module, Wear Plate | 6 |
| 42 | LA-1290345 | Seal-Discharge Spacer | 2 |
| 43 | LA-6908033 | Ring, Oval Joint | 2 |
| 1Offered in Plain Carbon or Stainless Steel1 | |||
9P100泥浆泵最先出现在德州利安石油机械有限公司。
]]>10P130泥浆泵最先出现在德州利安石油机械有限公司。
]]>最大输入功率: 1300HP(969KW)
冲程 inch(mm) : 10” (254mm)
额定转速 spm : 140
最大缸套尺寸, inches (mm) : 6 3/4” (171.5)
吸入口尺寸: 8” ASA-150 lb. R.J. flang
排出口尺寸, cross: 5” API-5000 lb. R.J. flang
齿轮比: 2.853:1
2. 10P130泥浆泵易损件清单
| 10P130 | PART NO | PART NO | PART NO. | |
| Liners & Liner Packing | Gaskets | |||
| SIZES | LINER | LINER PACKING | Valve Cover Gasket | LA-61-0255 |
| 4” | N/A | N/A | Cylinder Head Gasket | N/A |
| 4?” | LA-0255-44 | LAG-0274 | ||
| 5” | LA-0255-50 | LAG-0265 | ||
| 5?” | LA-0255-54 | LAG-0263 | ||
| 6” | LA-0255-60 | LAG-0261 | ||
| 6?” | LA-255-62 | LAG-0283 | ||
| 6?” | LA-0255-64 | LAG-0768 | ||
| 6?” | LA-0255-66 | LAG-0287 | ||
| SERIES | LA-4 WEB | LA-FULL OPEN | LA-G2 | LA-ROUGHNECK |
| VALVE (Urethane Insert) | LA-U5B-EH | LA-6FO-V1 | LA-1560995 | LA-RN6-V1 |
| VALVE (Rubber Insert) | LA-5B-EH | N/A | N/A | N/A |
| VALVE SEAT | LA-6ADD-B4 | LA-6FO-S4 | LA-1561450 | LA-RN6-S4 |
| VALVE SPRING | LA-5710-115 | LA-5710-115 | LA-1560701 | LA-5710-115L |
| VALVE INSERT (Red Thunder) | LA-UDD-6ABHT | N/A | N/A | N/A |
| VALVE INSERT (Urethane) | LA-UDD-6B | LA-6FO-SI | LA-1560587 | LA-RN6-I |
| VALVE INSERT (Rubber) | LA-DD-6B | N/A | N/A | N/A |
| VALVE SEAT PULLER HEAD | LA-1700-6 | LA-1700-6FO | LA-1700-6G2 | LA-1700-6FO |
| Piston Size | Bonded Pistons | Imperial Piston | Imperial Rubber Kits | Rubber Bonded | Long Life (Urethane) |
| 4” | LA-RT-400 | LA-I40HK14/15 | LA-I40HK | LA-RB-400 | LA-LL-400 |
| 4?” | LA-RT-440 | LA-I44HK14/15 | LA-I44HK | LA-RB-440 | LA-LL-440 |
| 5” | LA-RT-500 | LA-I50HB14/15 | LA-I50HB | LA-RB-500 | LA-LL-500 |
| 5?” | LA-RT-540 | LA-I54HB14/15 | LA-I54HB | LA-RB-540 | LA-LL-540 |
| 6” | LA-RT-600 | LA-I60HB14/15 | LA-I60HB | LA-RB-600 | LA-LL-600 |
| 6?” | LA-RT-640 | LA-I64HL14/15 | LA-I64HL | LA-RB-640 | LA-LL-640 |
| *1/4 Size are available upon request1/4英寸可根据用户需要提供 | |||||
| RODS | |
| PISTON ROD | LA-0256-A |
| SUB ROD | LA-0256-B |
| EXTENSION ROD | LA-16-0256 |
| ROD CLAMP | LA-24-0256 |
| PISTON ROD NUT | LA-7403364 |
NATIONAL 10P130
FLUID END MODULE AND ACCESSORIES
| Item | Part No. | Description | Qty per Pump |
| 1 | LA-1290335 | Discharge Module, Studded (Included Items 2 – 10) | 3 |
| 2 | LA-1290336 | Discharge Module, Only | 3 |
| 3 | LA-6300240 | Nut – Frame | 24 |
| 4 | LA-2408020 | Stud – Frame | 24 |
| 5 | LA-6300160 | Nut – Liner Bushing | 18 |
| 6 | LA-2408018 | Stud – Liner Bushing | 18 |
| 7 | LA-6300241 | Nut – Suction to Discharge Module | 18 |
| 8 | LA-2408034 | Stud – Suction to Discharge Module | 18 |
| 9 | LA-6300220 | Nut – Threaded Ring | 72 |
| 10 | LA-2408019 | Stud – Threaded Ring | 72 |
| 11 | LA-1290338 | Suction Module, Studded (Included Items 9, 10, 12) | 3 |
| 12 | LA-1290339 | Suction Module, Only | 3 |
| 13 | LA-1290165 | Bushing – Line | 3 |
| 14 | LA-1290174 | Seal Retainer | 6 |
| 15 | LA-1290307 | Valve Cover | 6 |
| 16 | LA-1290178 | Screw – Wedge Adjusting | 6 |
| 17 | LA-6300160 | Nut – Wedge Adjusting | 6 |
| 18 | LA-1290315 | Washer – Wedge Adjusting | 6 |
| 19 | LA-1290308 | Threaded Ring | 6 |
| 20 | LA-1290376 | Wedge Assembly(included items 21-22) | 6 |
| 21 | LA-1290179 | Wedge, Set | 6 |
| 22 | LA-1290181 | Spring, Wedge Retaining | 6 |
| 23 | LA-1540126 | Gasket – Valve Cover | 6 |
| 24 | LA-1292140 | Holder – Valve Guide | 6 |
| 25 | LA-1292141 | Insert – Valve Guide | 6 |
| 26 | LA-6511416 | Pin, DoweIl | 6 |
| 27 | LA-1290357 | 1 Plate – Wear | 3 |
| 28 | LA-1290342 | Connector – Discharge | 2 |
| 29 | LA-7000305-11 | Screw, Hex Head | 16 |
| 30 | LA-7619050 | Washer, Lock | 16 |
| 31 | LA-1290343 | Adapter – Discharge Connector | 2 |
| 32 | LA-2410031-348 | Packing, Rectangular | 2 |
| 33 | LA-2410031-427 | Packing, Rectangular | 4 |
| 34 | LA-1290166 | Clamp – Liner | 3 |
| 35 | LA-1590051 | Seal – Suction Manifold | 3 |
| 36 | LA-1290348 | Spacer – Discharge, Studded (Included Items 37-39) | 2 |
| 37 | LA-1290341 | Spacer-Discharge | 2 |
| 38 | LA-2402560 | Stud – Discharge Spacer | 16 |
| 39 | LA-6300200 | Nut – Discharge Spacer | 16 |
| 40 | LA-7006605 | Capscrew | 16 |
| 41 | LA-1290344 | Seal – Module, Wear Plate | 6 |
| 42 | LA-1290345 | Seal-Discharge Spacer | 2 |
| 43 | LA-6908033 | Ring, Oval Joint | 2 |
10P130泥浆泵最先出现在德州利安石油机械有限公司。
]]>12P160泥浆泵最先出现在德州利安石油机械有限公司。
]]>最大输入功率: 1600HP(1193KW)
冲程 inch(mm) : 12” (304.8mm)
额定速度 : 120spm
最大缸套尺寸, inches (mm) :7 1/4” (184.2)
吸入口尺寸: 10” ASA-150 lb. R.J. flang
排出口尺寸: 6” API-5000 lb. R.J. flang
齿轮比 3.439:1
2. 12P160泥浆泵液力端零部件表
7 1/2× 12 12P160
| 12P160 | PART NO. | PART NO. | PART NO. | |
| Liners & Liner Packing | Gaskets | |||
| SIZES | LINER | LINER PACKING | Valve Cover Gasket | LAG-0771 |
| 4” | LA-0259-40 | LAG-0265 | Cylinder Head Gasket | N/A |
| 4?” | LA-0259-44 | LAG-0265 | ||
| 5” | LA-0259-50 | LAG-0265 | ||
| 5?” | LA-0259-54 | LAG-0263 | ||
| 6” | LA-0259-60 | LAG-0261 | ||
| 6?” | LA-0259-62 | LAG-0283 | ||
| 6?” | LA-0259-64 | LAG-0284 | ||
| 6?” | LA-0259-66 | LAG-0287 | ||
| 7” | LA-0259-70 | LAG-0285 | ||
| 7?” | LA-0259-72 | LAG-0286 | ||
| 7?” | LA-0259-74 | N/A | ||
| SERIES | LA-4 WEB | LA-FULL OPEN | LA-G2 | LA-ROUGHNECK |
| VALVE (Urethane Insert) | LA-U5C-EEF | LA-7FO-V1 | LA-1560985 | LA-RN7-V1 |
| VALVE (Rubber Insert) | LA-5C-EEF | N/A | N/A | N/A |
| VALVE SEAT | LA-7DD-B12 | LA-7FO-S4 | LA-1561440 | LA-RN7-S12 |
| VALVE SPRING | LA-5710-115 | LA-5710-115L | LA-1560702 | LA-5710-115L |
| VALVE INSERT (Red Thunder) | LA-UDD-7BHT | N/A | N/A | N/A |
| VALVE INSERT (Urethane) | LA-UDD-7B | LA-7FO-SI | LA-1560557 | LA-RN7-I |
| VALVE INSERT (Rubber) | LA-DD-7B | N/A | N/A | N/A |
| VALVE SEAT PULLER HEAD | LA-1700-7 | LA-1700-7FO | LA-1700-7G2 | LA-1700-7FO |
| Piston Size | Bonded Pistons | Imperial Piston | Imperial Rubber Kits | Rubber Bonded | Long Life (Urethane) |
| 4” | LA-RT-400 | LA-I40HK14/15 | LA-I40HK | LA-RB-400 | LA-LL-400 |
| 4?” | LA-RT-440 | LA-I44HK14/15 | LA-I44HK | LA-RB-440 | LA-LL-440 |
| 5” | LA-RT-500 | LA-I50HB14/15 | LA-I50HB | LA-RB-500 | LA-LL-500 |
| 5?” | LA-RT-540 | LA-I54HB14/15 | LA-I54HB | LA-RB-540 | LA-LL-540 |
| 6” | LA-RT-600 | LA-I60HB14/15 | LA-I60HB | LA-RB-600 | LA-LL-600 |
| 6?” | LA-RT-640 | LA-I64HL14/15 | LA-I64HL | LA-RB-640 | LA-LL-640 |
| 7” | LA-RT-700 | LA-I70HL14/15 | LA-I70HL | LA-RB-700 | LA-LL-700 |
| 7?” | N/A | LA-I74HL14/15 | LA-I70HL | LA-RB-740 | LA-LL-740 |
| *1/4 Size are available upon request | |||||
| RODS | |
| PISTON ROD | LA-0258-A |
| SUB ROD | LA-0258-B |
| EXTENSION ROD | LA-16-0258 |
| ROD CLAMP | LA-24-0258 |
| PISTON ROD NUT | LA-7403364 |
NATIONAL 12P160
FLUID END MODULE AND ACCESSORIES
| Item | Part No. | Description | Qty per Pump |
| 1 | LA-1292240 | Discharge Module, Studded (Included Items 2 – 10) | 3 |
| 2 | LA-1292241 | Discharge Module, Only | 3 |
| 3 | LA-6300220 | Nut – Frame | 30 |
| 4 | LA-2408029 | Stud – Frame | 30 |
| 5 | LA-6300180 | Nut – Liner Bushing | 18 |
| 6 | LA-2408028 | Stud – Liner Bushing | 18 |
| 7 | LA-6300281 | Nut – Suction to Discharge Module | 18 |
| 8 | LA-2408033 | Stud – Suction to Discharge Module | 18 |
| 9 | LA-6300240 | Nut – Threaded Ring | 72 |
| 10 | LA-2408027 | Stud – Threaded Ring | 72 |
| 11 | LA-1292243 | Suction Module, Studded (Included Items 9, 10, 12) | 3 |
| 12 | LA-1292244 | Suction Module, Only | 3 |
| 13 | LA-1292165 | Bushing – Liner | 3 |
| 14 | LA-1292174 | Seal Retainer | 6 |
| 15 | LA-1292172 | Valve Cover | 6 |
| 16 | LA-1292178 | Screw – Wedge Adjusting | 6 |
| 17 | LA-6300182 | Nut – Wedge Adjusting | 6 |
| 18 | LA-1292171 | Washer – Wedge Adjusting | 6 |
| 19 | LA-1292176 | Thread Ring | 6 |
| 20 | LA-1292268 | Wedge Assembly(included items 21-22) | 6 |
| 21 | LA-1292179 | Wedge, Set | 6 |
| 22 | LA-1290181 | Spring, Wedge Retaining | 6 |
| 23 | LA-1540127 | Gasket – Valve Cover | 6 |
| 24 | LA-1292140 | Holder – Valve Guide | 6 |
| 25 | LA-1292141 | Insert – Valve Guide | 6 |
| 26 | LA-6511416 | Pin, Dowell | 6 |
| 27 | LA-1292266 | 1 Plate – Wear | 3 |
| 28 | LA-1292252 | Connector – Discharge | 2 |
| 29 | LA-7000307-11 | Screw, Hex Head | 16 |
| 30 | LA-7619050 | Washer, Lock | 16 |
| 31 | LA-1292253 | Adapter – Discharge Connector | 2 |
| 32 | LA-2410031-433 | Packing, Rectangular | 2 |
| 33 | LA-2410031-437 | Packing, Rectangular | 4 |
| 34 | LA-1292166 | Clamp – Liner | 3 |
| 35 | LA-1540851 | Seal – Suction Manifold | 3 |
| 36 | LA-1292262 | Spacer – Discharge, Studded (Included Items 37-39) | 2 |
| 37 | 1292246 | Spacer-Discharge | 2 |
| 38 | LA-2408015 | Stud – Discharge Spacer | 16 |
| 39 | LA-6300240 | Nut – Discharge Spacer | 16 |
| 40 | LA-7006685 | Capscrew | 16 |
| 41 | LA-1292257 | Seal – Module, Wear Plate | 6 |
| 42 | LA-1292258 | Seal-Discharge Spacer | 2 |
| 43 | LA-6908040 | Ring, Oval Joint | 2 |
12P160泥浆泵最先出现在德州利安石油机械有限公司。

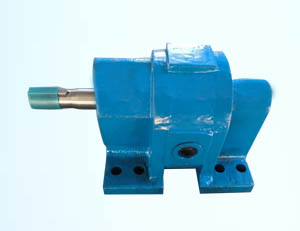

]]>2S 齿轮油泵最先出现在德州利安石油机械有限公司。
]]>
型号：2S
转速（最高）:1800r/min
排量 :20L/min
排出压力:1.4Mp
材料: 中碳合金钢
2S 齿轮油泵最先出现在德州利安石油机械有限公司。
]]>30T-2 柱塞泵最先出现在德州利安石油机械有限公司。
]]>| 额定输入 | 30HP(22.4KW) |
| 最高冲次 | 400SPM (400 冲 / 分) |
| 冲程 | 2″ (50.8 mm ) |
| 最高工作压力 | “L” MODEL 2000PSI （13,788KPA） “H” MODEL 5000PSI ( 34,470KPA ) |
| 最大柱塞直径 | 2-1/4″（57.2mm） |
| 键 Key | 1/2″ x 1/4″ (12.7mm x 6.4mm) |
| 重量（主机） | 640kg |
二、30T-2 柱塞泵性能参数
30T-2-Single-Acting-Plunger-Pump-Brochure三、National 柱塞泵相关泵型
| 30T-2 | |||
| 60T-3 | 80T-3 | ||
| 100T-4 | 130T-4 | ||
| 165T-5 | 200T-5 | 250T-5 | 300Q-5 |
| JWS165 | JWS185 | JWS340 | JWS400 |
30T-2 柱塞泵最先出现在德州利安石油机械有限公司。
]]>60T-3 柱塞泵最先出现在德州利安石油机械有限公司。
]]>| 额定输入 | 60HP(44.74KW) |
| 最高冲次 | 400SPM (400 冲 / 分) |
| 冲程 | 3″ (76.2mm ) |
| 最高工作压力 | “L” MODEL 1500PSI （10,342KPA） “M” MODEL 3200PSI ( 22,063KPA ) “H” MODEL 5000PSI ( 34,474KPA ) |
| 最大柱塞直径 | 3″ (76.2mm ) |
| 键 Key | 5/8″ x 5/16″ (15.9mm x 7.9mm) |
| 重量（主机） | 1145kg |
二、60T-3 柱塞泵性能参数
60T-3-Single-Acting-Plunger-Pump-Brochure三、National 柱塞泵相关泵型
| 30T-2 | |||
| 60T-3 | 80T-3 | ||
| 100T-4 | 130T-4 | ||
| 165T-5 | 200T-5 | 250T-5 | 300Q-5 |
| JWS165 | JWS185 | JWS340 | JWS400 |
60T-3 柱塞泵最先出现在德州利安石油机械有限公司。
]]>
