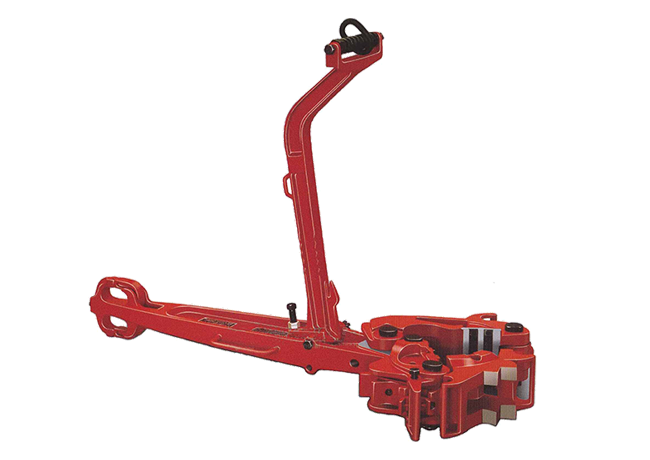

DB Manual Tong
Manual Elevator Tong
The manual elevator tong is a tool for making up and breaking out the connections of various pipe strings and tools during drilling and workover operations. By changing the closing jaws and the closing steps, it can meet the needs of making up and breaking out the connections for pipe diameters of different sizes. The product is designed and manufactured in accordance with the requirements of API Spec 7K specification.
Key Features
- Functionality: Making up and breaking out connections for pipe strings and tools.
- Adjustability: Compatible with different pipe diameters by changing closing jaws and steps.
- Compliance: Meets API Spec 7K requirements.
| No. of latch lug jaws | No. of hinge pin hole | Handle OD | Max. Torque kN·m | |
| in | mm | |||
| 1# | Ⅰ | 31/2~6 | 88.9~152 | 90 |
| Ⅱ | 53/4~7 | 146~178 | ||
| Ⅲ | 65/8~81/4 | 168~210 | ||
| 2# | Ⅰ | 8~95/8 | 203~244 | |
| Ⅱ | 105/8~111/4 | 270~286 | ||
| 3# | Ⅰ | 113/4~123/4 | 298~324 | 55 |
| Ⅱ | 133/8~143/8 | 340~365 | ||
| 4# | Ⅱ | 16~17 | 406~432 | |

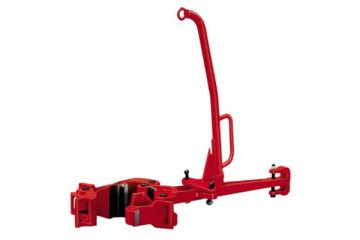

Type Q3-1/2″ ~ 17″/90″ Manual Tong
The Type Q3- 1/2“ ~ 17“/90“ Manual Tong is specifically designed for making up or breaking out the screws of drill tools, casing joints, or couplings. Its adaptability is enhanced by the ability to adjust the lug jaws latch and latch steps.
Applications
- Drilling Operations: Making up and breaking out connections for drill tools.
- Workover Operations: Handling casing joints and couplings.
This product ensures high performance and reliability, making it an essential tool for demanding oilfield operations.
